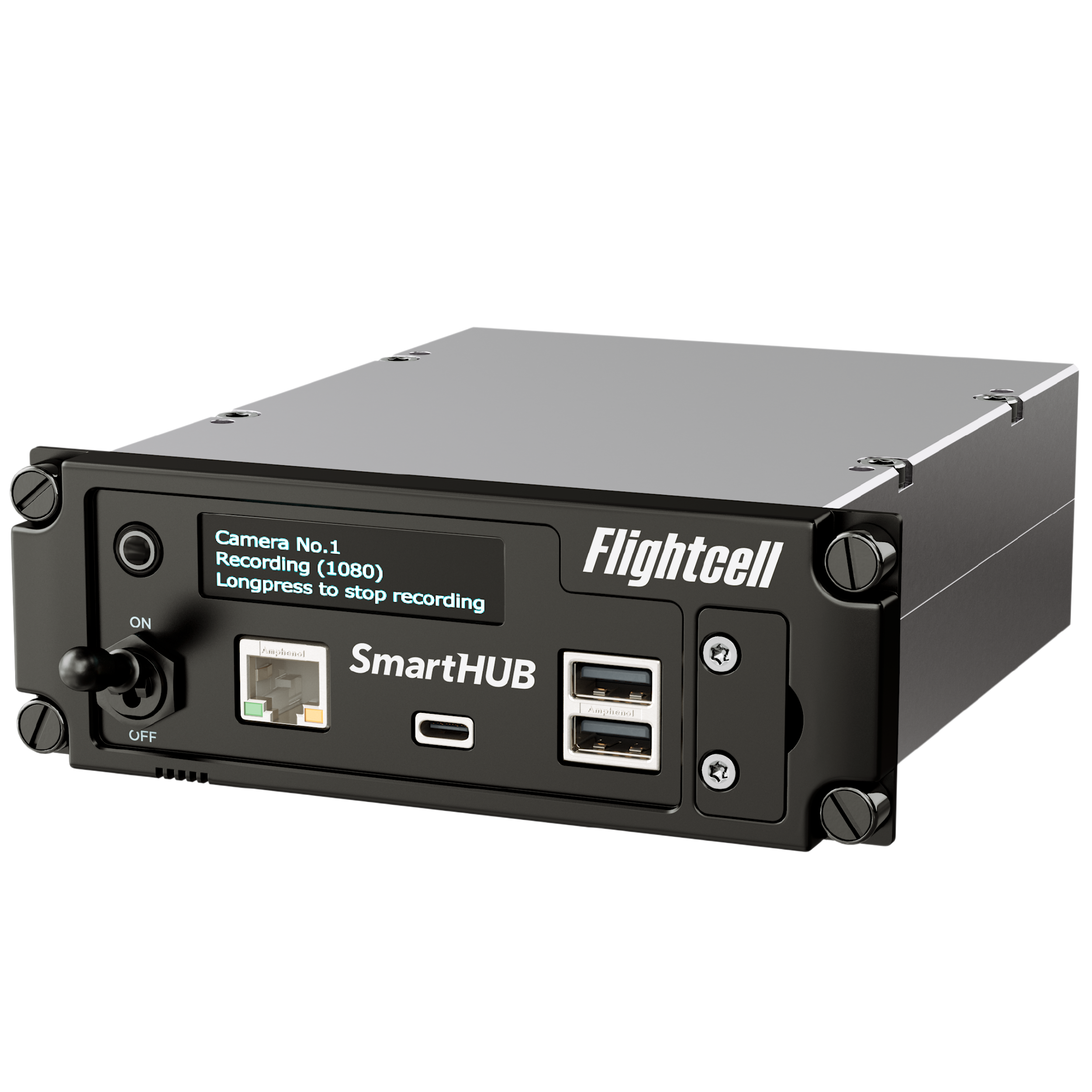

The Flightcell SmartHUB is a cockpit video, audio, and flight data recorder, and an access point providing connectivity to multiple onboard devices.

Flightcell SmartHUB is the perfect tool to meet increasing global requirements for mandatory cockpit recording for government and public sector rotorcraft and fixed wing turbo prop operators. It is an effective tool for flight optimization, post flight analysis/incident investigations and pilot training. All video, audio and flight data can be accessed post flight through the Flightcell SmartHUB Flight Viewer Software - no subscription is required.

The Flightcell Camera integrates with the Flightcell SmartHUB. One or two Flightcell Cameras can be installed with the Flightcell SmartHUB. The Flightcell Camera is compact, made from machine alloy (9601), and is easily installed using a mountable swivel bracket.

  • Flightcell SmartHUB Key Benefits & Features

    Records HD video, audio and flight data

    Aviation compliant Wi-Fi access point (optional)

    Integrated USB hub and ethernet switch

    Flight optimization, post flight analysis/incident investigations and training tool

    Dedicated Flightcell SmartHUB Flight Viewer Software (no subscription required)

    Hardened SD card slot

    Fast charging USB-A port (top port)

    Charging USB-C port

    Capable of logging:

    GPS position data, altitude & speed

    Pressure altitude

    Vertical rate (GPS & barometric), turn rate

    Pitch, roll, G-force

    Flightcell Camera Key Features & Benefits

    Compact and discrete design

    Strong easy mount machine alloy (9601)

    1080P Ultra low light camera

    Maximum resolution 1920 x 1080P, 2.0MP

    Embedded mic for ambient cockpit audio recording

    One or two cameras can be installed with the Flightcell SmartHUB

    Cameras can be easily changed out as required or technology changes

    Please note: Product specifications are correct as at March 2022 and may change without notice.

  • View Specifications

Industry Solutions

Key Capabilities

For more information on the new Flightcell SmartHUB & Camera please contact the Flightcell sales team
